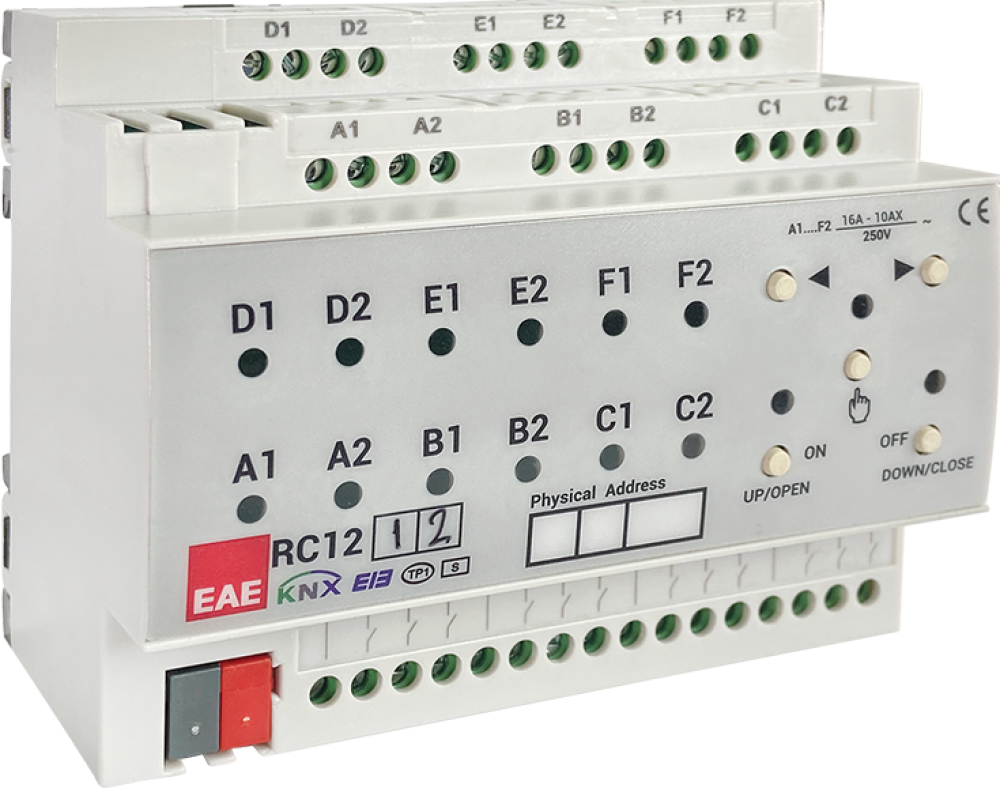

RCU1212 Room Control Unit

12x16A Outputs + 12 Digital Inputs


EAE Room Controller Unit is an all-in-one KNX device to control various different room units from a single interface. Room Control Unit provides control of lights, blinds and fan coils as well as optional dry contact inputs.


Click for Product Documents



General Specifications

Does not require an external power supply

Room Control Unit offers following functions:

  • Light switch
  • AC/DC blind control
  • Fan control
  • Fan Coil Control (2 & 3 point valve)
  • Dry contact inputs

Switching resistive, capacitive and inductive loads in accordance with EN 60669 with following functions:

  • Staircase
  • External logic
  • Priority
  • Threshold
  • Operating hour
  • Sweep

12 independent input channels with following universal interface functions:

  • Switch / push button input
  • Dimmer control
  • Shutter/blinds control
  • Value transfer
  • Scene control
  • Counter for count pulse
